NIS 1209-1:2024 Minimum Energy Performance Standard - Lighting - Part 2: Luminaires

Policy Details

NIS 1209-1:2024 Minimum Energy Performance Standard - Lighting - Part 2: Luminaires
Source
This standard specifies the minimum energy performance standard (MEPS), functional performance and energy labelling requirements for luminaires, including both indoor and outdoor / streetlight luminaires, such as indoor ambient luminaires, linear batten luminaires, linear troffer luminaire, downlight luminaires, high-bay luminaires, low-bay luminaires and planer (or plane) luminaires.

All luminaires, used together with rated lamps if needed, shall comply with the minimum luminous efficacy requirements for the entire light source (that is luminaire) such that:
Minimum efficacy = Base efficacy + Allowance
where “Base efficacy” is set out in two phases in Table 1, and “Allowance” is the sum of eligible allowances in Table 2:

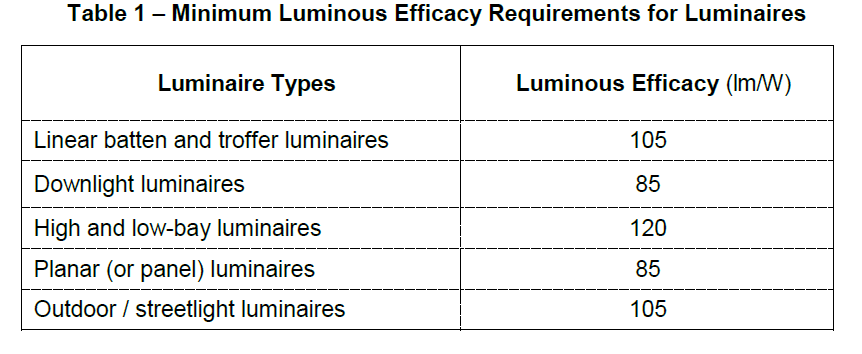

Table 1 – Minimum Luminous Efficacy Requirements for Luminaires

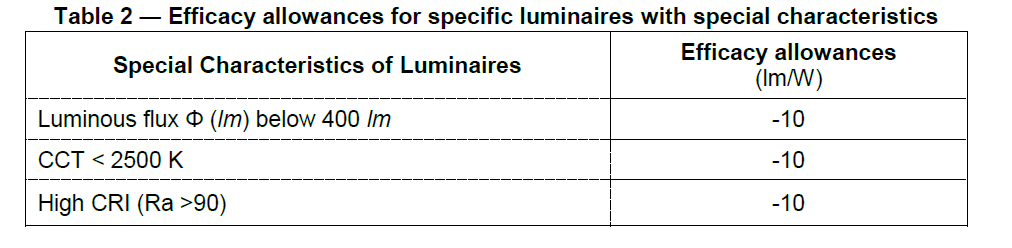

Table 2 ― Efficacy allowances for specific luminaires with special characteristics

Energy Label:

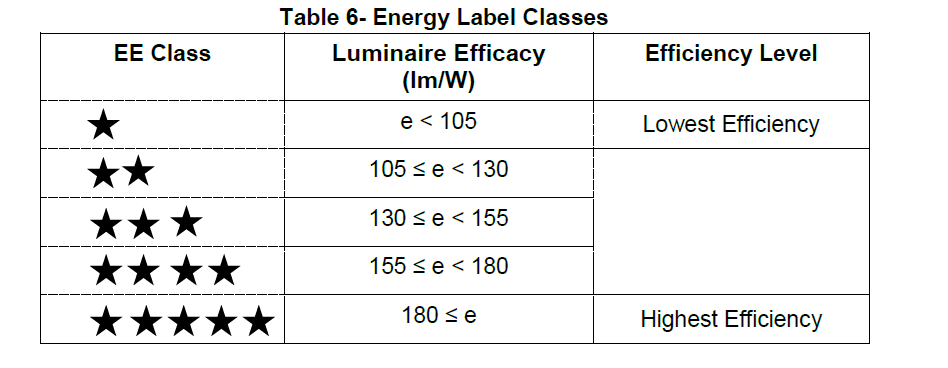

Energy Label Classes

See more
Download the data
Africa
Nigeria
Mandatory
Comparative Label
Minimum Performance Standard
Show Label
Entered into force & Adopted
Adopted
Updated by CLASP
Standards Council of Nigeria
NIS IEC 62722-2-1
NIS IEC 62722-2 series
NIS IEC 61000-4-11; NIS IEC 61000-4-5
NIS IEC 61000-4-7; NIS IEC 61000-3-2
NIS IEC 61643-11
IES LM-79 CIE S 025
NIS IEC TR 61547-1
NIS IEC TR 63158
NIS CISPR 15
NIS IEC 61547

Fuel Types

Electricity

Related Topics

Energy Efficiency

Products Covered

Luminaires
