National Energy Efficiency and Conservation (Pakistan Energy Labels for Motors) Regulations, 2023
Source
This regulation establishes Minimum Energy Performance standards for electric motor efficiency and requires compliance with a star rating system. The regulation applies to the import and offer for sale of three-phase squirrel cage induction motors designed to operate at 50 Hz or 60 Hz with:
a) a rated output power greater than or equal to 0.12 kW and less than or equal to 1,000 kW; and
b) a rated voltage of up to 1000 volts alternating current; and
c) 2, 4, 6 or 8 poles; and
d) a continuous duty rating.
The regulation also applies to the import and offer for sale of single-phase squirrel cage induction motors of all types designed to operate at 50 Hz or 60 Hz with a rated output power greater than or equal to 0.12 kW.

 The motors should conform to all the requirements of IEC 60034-30-1 or technically equivalent, as applicable to participate in Pakistan energy labeling program.

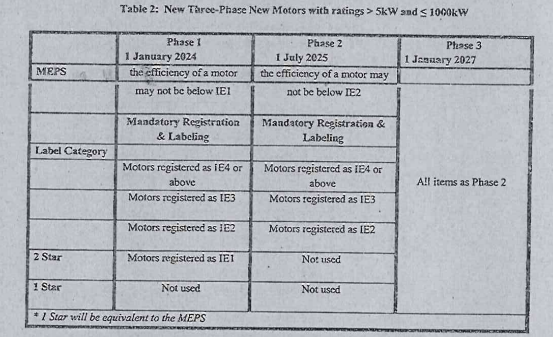

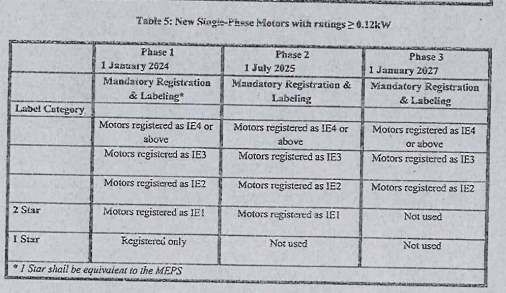

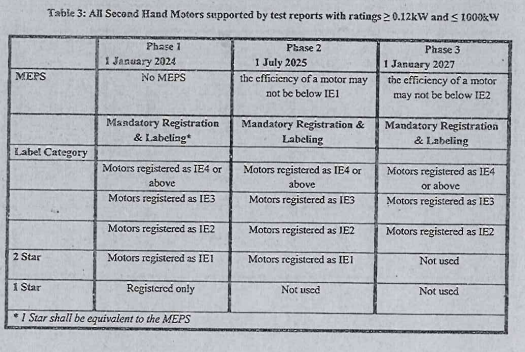

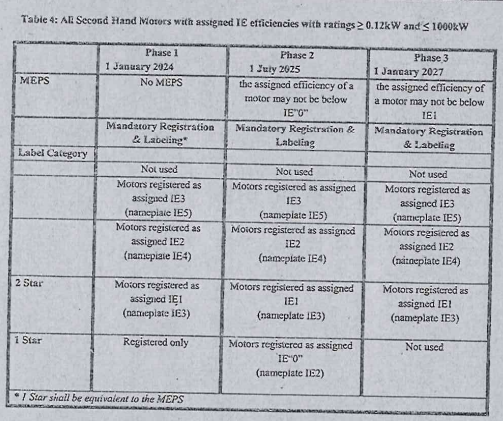

Star Rating Band:

New Three-Phase New Motors with ratings ≥ 0.12 kW and ≤ 5kWNew Three-Phase New Motors with ratings ≥ 5 kW and ≤ 1000 kWAll Second Hand Motors supported by test reports with ratings ≥ 0.12 kW and ≤ 1000 kWAll Second Hand Motors with assigned IE efficiencies with ratings ≥ 0.12 kW and ≤ 1000 kWNew Single-Phase Motors with ratings ≥ 0.12 kW



See more
Download the data
Asia and Pacific
Pakistan
Mandatory
Comparative Label
Minimum Performance Standard
Show Label
Entered into force & Adopted
Adopted
Revised
Updated by CLASP
National Energy Efficiency and Conservation Authority (NEECA)
ISO/IEC 17025, IEC 60034-1 ED. 13.0, IEC 60034-2-1 Ed. 2.0 2014

Fuel Types

Electricity

Related Topics

Energy Efficiency

Products Covered

3-Phase Motors
1-Phase Motors
